Radiator

Flameproof Radiator

These particularly robust appliances have been designed to heat, without failure, at 40°C maxi, industrial premises, painting rooms, inflammable products, storage warehouses, petrols stations, off-shore platforms ...

Coonection by gland in a leakproof EEx dIIC box IP 557.

Protected steel brackets and carcass.

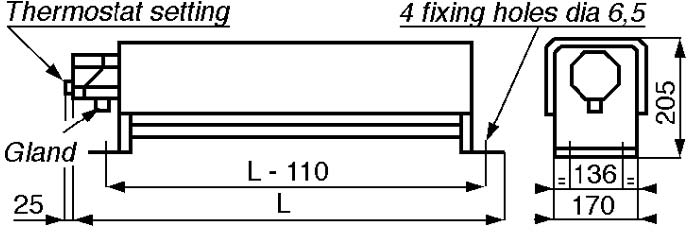

Horizontal mounting.

Equipped with an integrated control thermostat range 0 ~ 50°C in an explosionproof box.

Voltage : 230 V 1 phase or 230 V 3 phases or 400 V 3 phases.

Industrial Radiator

These particularly robust appliances have been especially designed for the heating of industrial premises, technical areas, control

rooms and movable on-site cabins.

Connection by gland in an aluminium terminal box IP557.

Protected steel brackets and carcass. Horizontal mounting.

Some models are fitted with an integral control thermostat range 0 à 50°C.

Wattage : 500 to 1000 W

Voltage : 230 V 1 phase. Low powered models for single phase supply. The thermostat setting knob is located outside of the unit.

Wattage : 1500 to 4500 W

Voltage: 230/400 V tri.

Supplied coupled 400 V 3 phases.

Possible coupling 230 V 1 phase (except 4500 W).

Medium powered models for single phase supply.

The thermostat setting knob is located outside of the unit.

Accessory

Pair of protected steel brackets
