Rotary Valve & Diverter Valve

´ë¿ë·®ÀÇ Pneumatic Conveying System¿¡ ÀûÇÕÇÑ Rotary Valve¿Í Diverter Valve

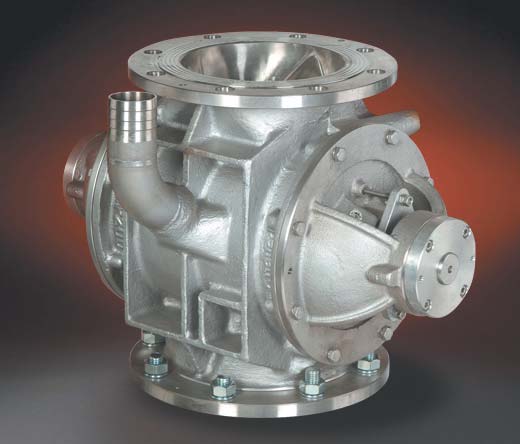

Rotary Valve

Applications

  • For use with granular products and pellets
  • For gravity discharge and metering
  • For feeding pneumatic conveying systems
  • Suitable for differential pressure up to 15 psi (1bar)

Design

  • Sizes from 4" to 20" (100mm to 500mm)
  • Flanges: ANSI 150#, DIN PN10, JIS 5k/10k
  • Temperature Range: up to 480° F, 250° C
  • Drive: various arrangements available
  • Materials: housing stainless steel casting,rotor stainless steel, welded
  • Double lip seal

Features

  • Anti shearing device (patented) for gentle product handling
  • Integrated leakage air vent for improved filling efficiency
  • Heavy duty housing and bearing support for minimized rotor tolerance
  • Closed end rotor Options
  • Quick clean design with extraction device
  • Polished grades available
  • Special rotor design for metering available
  • Shaft seal purge kit
  • Special material grades on request
  • Wear protection
  • Feed shoe, vent hopper and speed monitor

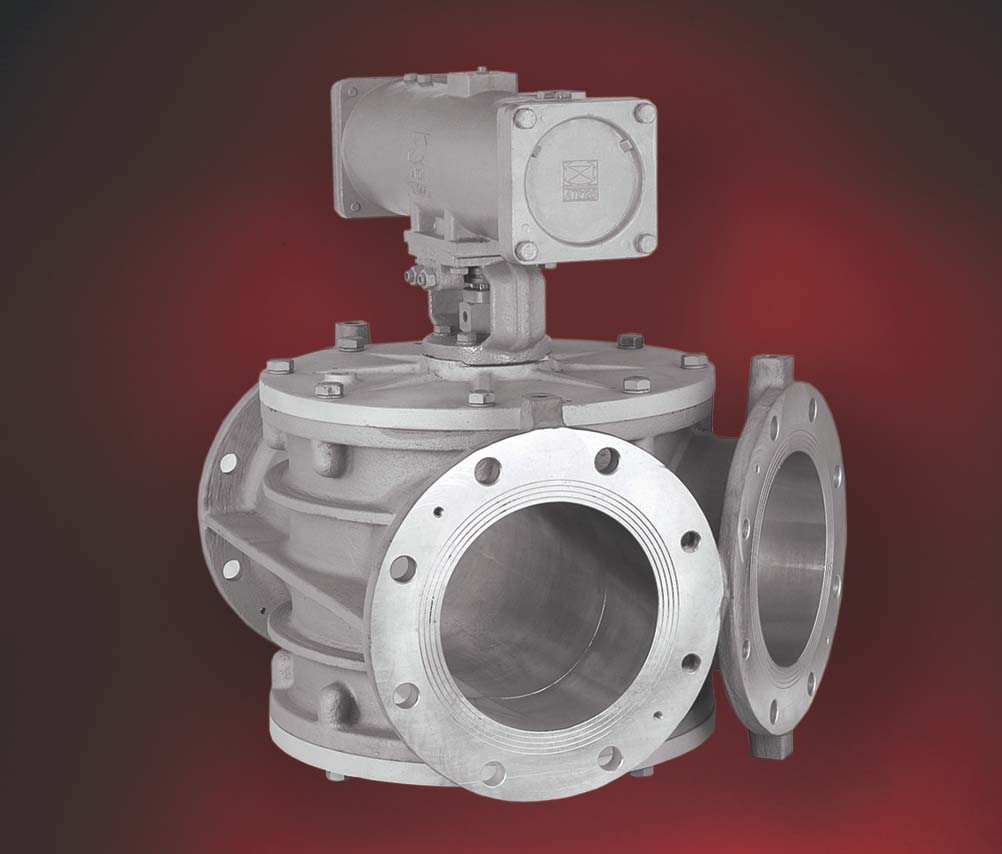

Diverter Valve DVP

Application:

• Suitable for granular and pellets

• For distributing or merging of product flow

• For differential pressure up to 60psi ( 4.0 bar)

Design:

• Sizes from 3" to 12" (80mm to 300mm)

• Flanges: ANSI 150# or DIN PN10 or JIS 5k/10k

• Operating temperature up to 175ºF (80ºC)

• 45º flow direction

• Material of construction: stainless steel housing and rotor, side plate in aluminum

Features:

• Seal rings at each port

• Full round port pass way design

• Heavy duty body design for pressure surges up to 90psi (6.0bar)

• Manual or pneumatic operated

• Heavy duty pneumatic actuator with integrated mechanical stops

Options:

• High temperature design up to 350ºF (180ºC)

• Interior polished grades available

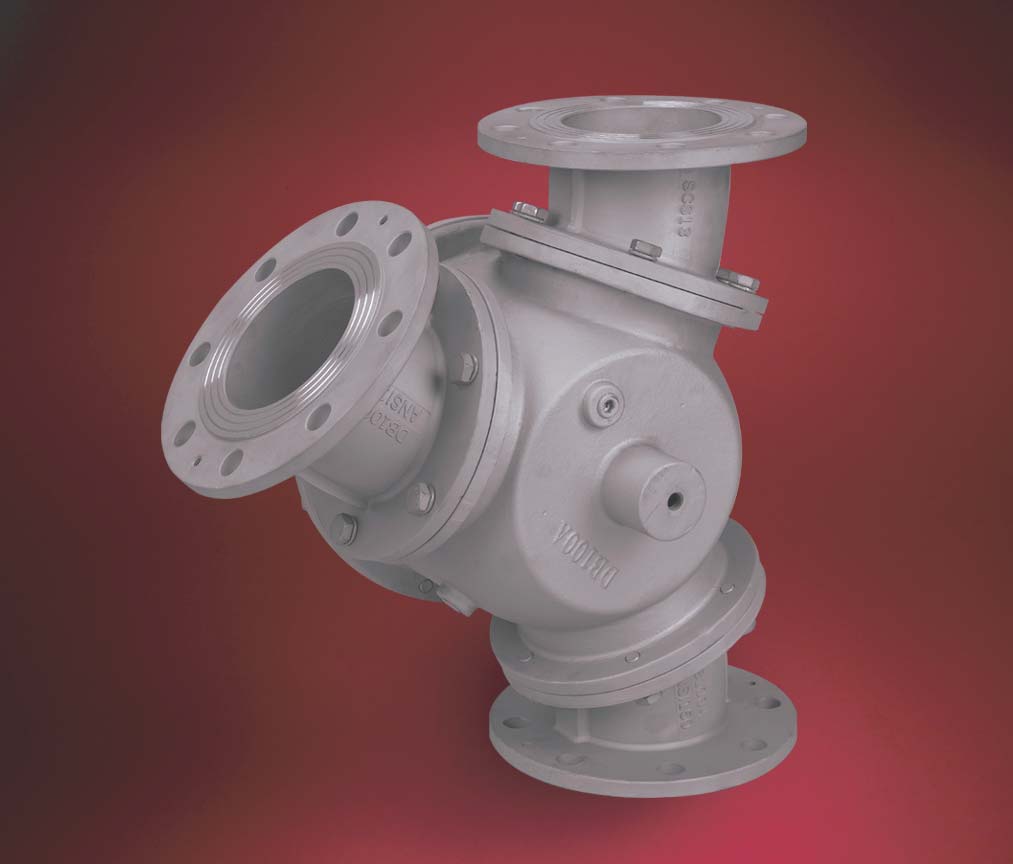

Diverter Valve DVB

Application:

• Suitable for powder, granular and pellets

• For distributing or merging of product flow

• For differential pressure up to 60psi ( 4.0 bar)

Design:

• Sizes from 1 1/2" to 12" (40mm to 300mm)

• Flanges: ANSI 150# or DIN PN10 or JIS 5k/10k

• Operating temperature up to 175F (80C)

• 45, 90 and 135º flow direction available

• Material of construction: stainless steel housing and rotor

Features:

• Protected seat rings at each port

• Full round port pass way design

• Heavy duty body design for pressure surges up to 90psi (6.0bar)

• Manual or pneumatic operated

• Heavy duty pneumatic actuator with integrated mechanical stops

Options:

• High temperature design up to 350ºF (180ºC)

• Interior polished grades available
